Disclaimer: Do NOT ever connect two amplifiers directly to the same speakers if you don't know what you are doing. Bad things would happen. Reach out if you have any questions.

In the world of audio systems, the quest for the perfect sound often leads enthusiasts to create a hybrid system that combines the immersive experience of a home theater with the nuanced audio quality of 2 channel setups. However, integrating these two systems can be challenging, especially when it comes to using the front speakers for both purposes. There are several ways to achieve this:

Method 1: Manual Switching (Not Recommended)

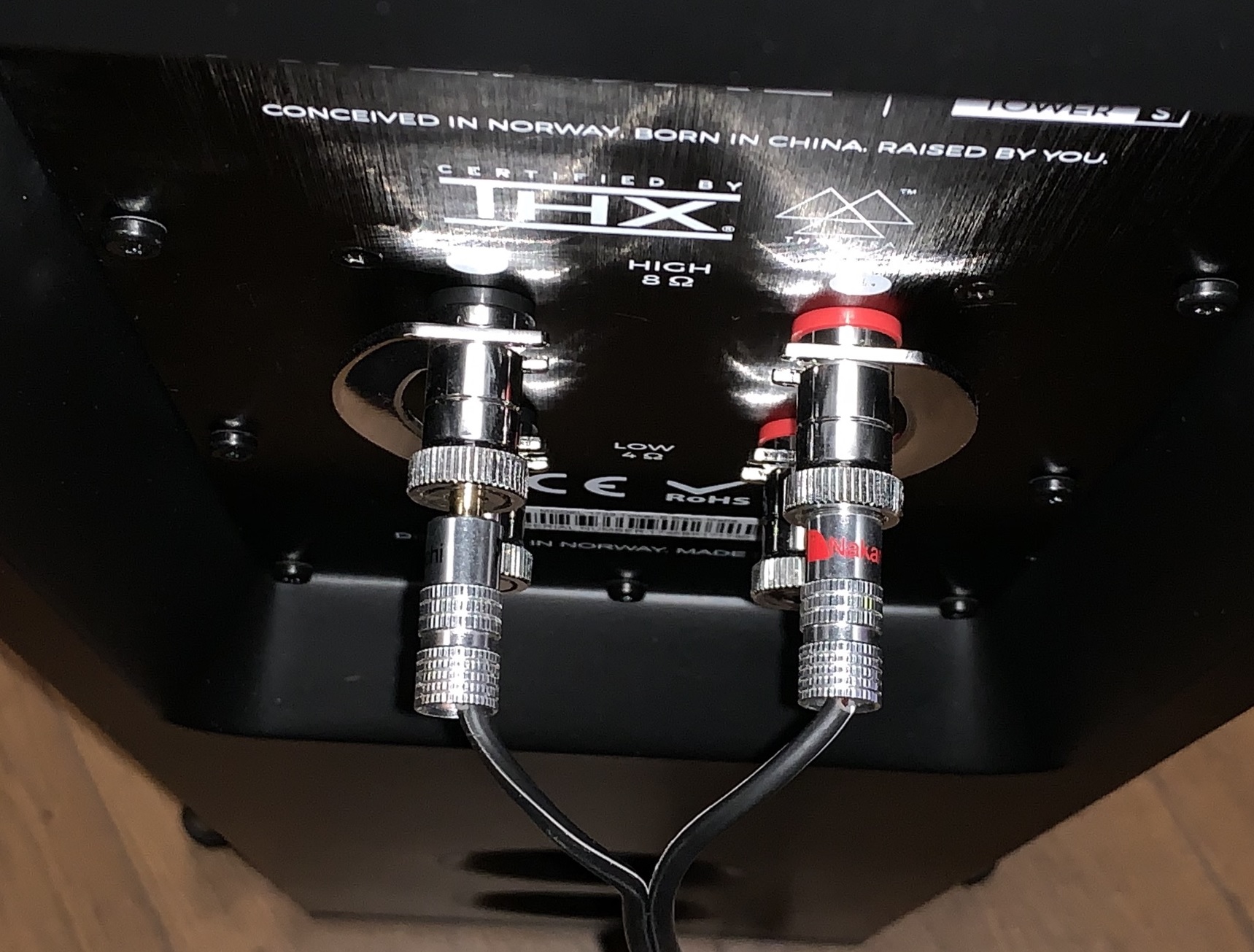

The most straightforward method is manually plugging and unplugging speaker wires to switch between the home theater receiver and the HiFi amplifier. While this method is simple, it is not recommended for several reasons:

• Risk of Damage: Constantly connecting and disconnecting wires can wear out the terminals on both your equipment and speakers.
• Convenience: It's a cumbersome process, especially if your equipment is not easily accessible.



Method 2: Home Theater Bypass on a 2-Channel Amplifier

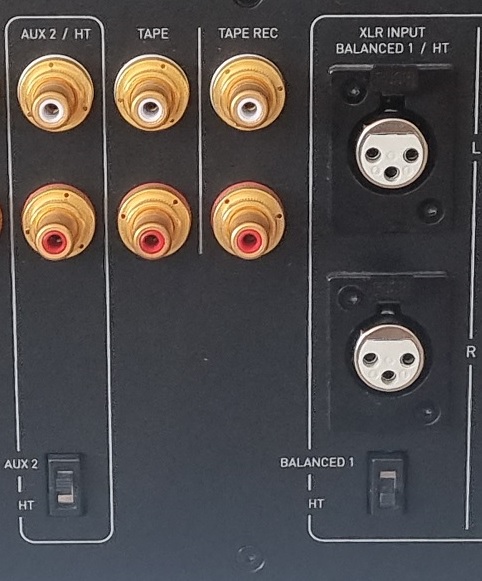

A more sophisticated approach involves using a 2-channel amplifier with a 'Home Theater Bypass' feature. This setup allows the amplifier to become part of the home theater system when needed:

• Seamless Integration: The bypass feature enables the front left and right speakers of your home theater to pass through the HiFi amplifier, ensuring a consistent sound quality.
• Ease of Use: Once set up, switching between modes is as simple as changing the input on your amplifier.
•
  To do this, you'll need to connect your AVR preamp front left and front right output to the Home Theater Bypass input of your 2 channels amplifier. When you want to watch a movie, turn on both amplifiers and select the Bypass input of your 2-channel amplifier. For stereo music listening, only turn on your 2-channel amplifier with your stereo source. In this system, the speakers are only connected to the 2-channel amplifier.



Method 3: Audio Selector Switch for Speakers/Amplifiers

An audio selector switch is a device that allows you to connect multiple audio sources to a single set of speakers. Here's why it's a good option:

• Versatility: You won't need a specific 2-channel amplifier with a Bypass feature, which can be rare (and very rare with XLR)
• Control: Some switches allow for more complex setups, like connecting multiple sets of speakers to different audio sources.
•
