Understanding Baffle Step in Home Cinema Applications with Baffle Walls
Introduction: Baffle step is an essential concept to comprehend when designing and setting up a home cinema system, particularly when incorporating baffle walls. Baffle step, also known as the "baffle diffraction step," refers to the acoustic phenomenon that occurs when sound waves encounter the edges of an object (such as a loudspeaker baffle) and undergo diffraction. In a home cinema setting with baffle walls, understanding and addressing the baffle step can significantly impact the overall audio performance and listening experience.

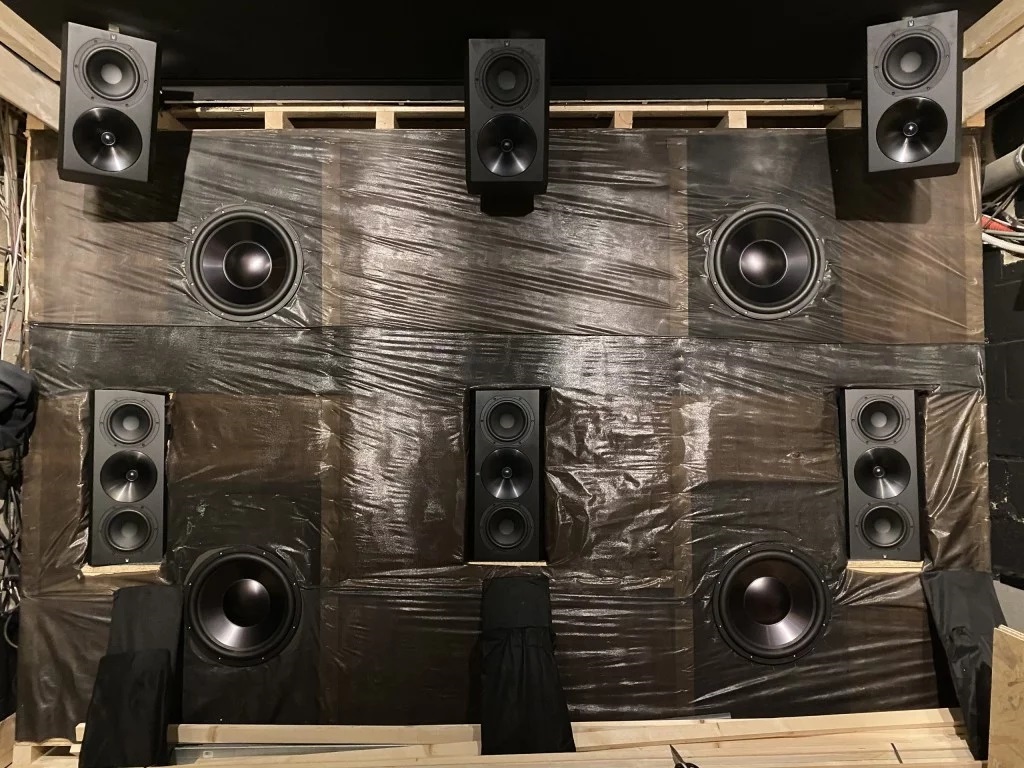

What is a Baffle Wall? A baffle wall in a home cinema is a large, acoustically absorptive & reflective surface placed between the front speakers (left, center, right) and the audience. It acts as a physical barrier, separating the front speakers from the audience while allowing sound to pass through without significant obstruction. Baffle walls are often used to hide the speakers behind an acoustically transparent screen and create a more immersive cinematic experience by presenting an unobstructed view of your content.
Understanding Baffle Step: When a loudspeaker is mounted on a baffle (such as a baffle wall), sound waves radiated from the speaker encounter the baffle's edges. As the waves meet these edges, they diffract, leading to a phenomenon called the baffle step. This phenomenon is most noticeable in the lower frequency range, usually between 200 Hz to 800 Hz, depending on the size of the baffle relative to the wavelength of the sound.
Effects of Baffle Step: The baffle step can have two main effects:
Attenuation of Low Frequencies: The most prominent effect of the baffle step is a reduction in the sound level of low frequencies (bass) as they diffract around the baffle edges. This can result in a dip in the sound response, making the bass sound weaker than the mid and high frequencies.
Changes in Directivity: Baffle step can also influence the directivity pattern of the loudspeaker. At frequencies where the baffle step occurs, the speaker's dispersion pattern may become narrower, leading to less even sound coverage across the listening area.
Addressing Baffle Step in Home Cinema Applications: To mitigate the effects of baffle step in a home cinema with baffle walls, several approaches can be taken:
Subwoofer Placement: Placing subwoofers strategically can help compensate for the bass attenuation caused by the baffle step. Multiple subwoofers distributed throughout the room can provide more even bass coverage.
Equalization (EQ): Utilizing a digital signal processor (DSP) or room correction system can help equalize the frequency response to counteract the baffle step's impact. The system can be tuned to boost the bass frequencies affected by the dip.
Speaker Positioning: Adjust the position of the front speakers to minimize the baffle step's impact. Experiment with speaker placement to find a balance between optimal baffle diffraction and overall audio performance.
Acoustic Treatment: Incorporate acoustic treatment, such as bass traps and diffusers, to improve sound dispersion and reduce standing waves in the room.
Conclusion: Understanding baffle step and its implications in home cinema applications with baffle walls is crucial for achieving a balanced and immersive audio experience. By addressing the baffle step through proper subwoofer placement, equalization, speaker positioning, and acoustic treatment, you can significantly enhance the overall sound quality and enjoy a more immersive cinematic experience at home.
