Our flush-mount kits are designed to sit flat against the wall, so they don't offer any tilt or swivel functionality. If you'd like to angle your speakers toward the listening position, a third-party mount is the way to go, and the good news is that you have plenty of options.
Compatibility

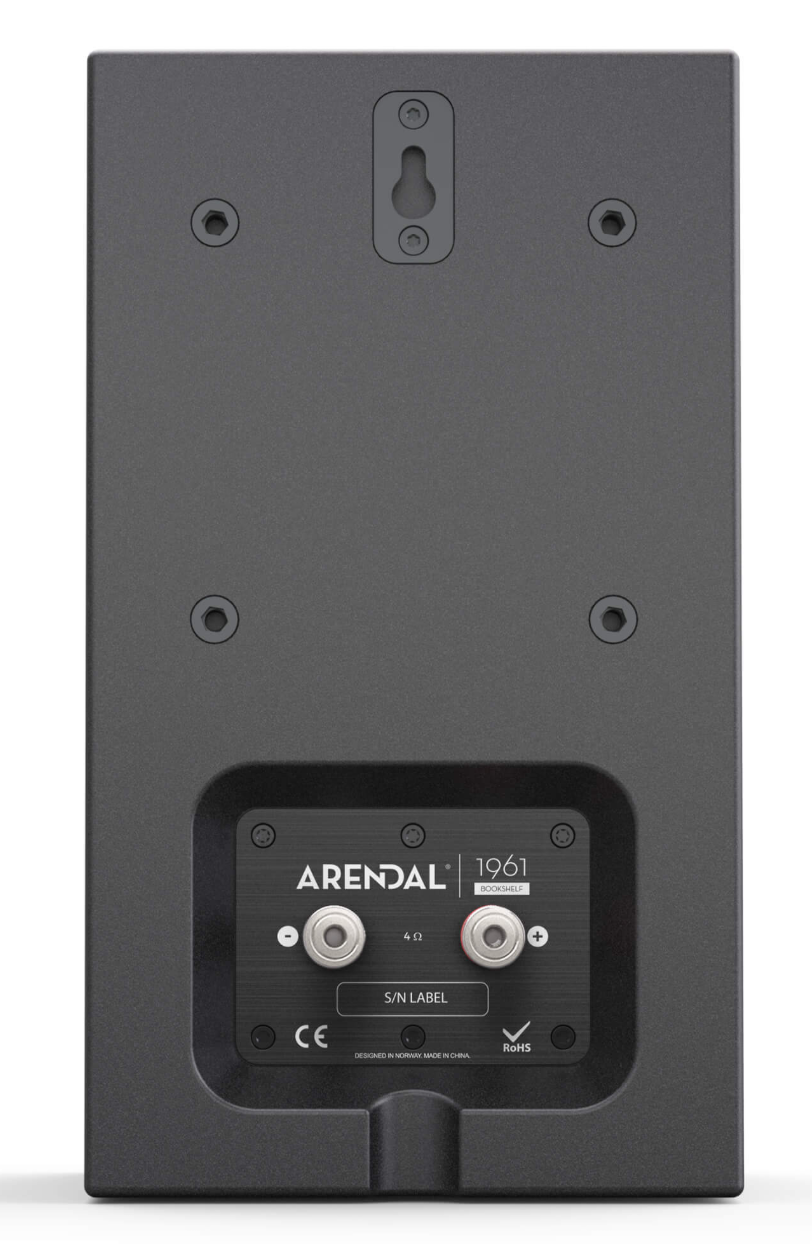

The 1961 Series and the 1723 Height S speakers use the standard VESA100 (100 x 100 mm) mounting pattern. This means any TV, monitor, or speaker mount that supports VESA100 and is rated for the weight of your speaker will work.
Screw and thread specifications
Before buying a mount, double-check the hardware:
- Thread size: M6
- Threaded insert depth: 11.85 mm
Make sure the screws you use are long enough to get a secure grip through the mount's bracket plate, but not so long that they bottom out in the insert before the bracket is clamped tight. If the mount comes with screws of a different size or length, replacement M6 screws are inexpensive and widely available at hardware stores.
Also be aware that some mounts have screw openings that are too narrow to accept the width of an M6 screw. These mounts can still be used, but the openings will need to be modified, for example, by carefully drilling them out to a slightly larger diameter, before the mount will fit.
Example mounts by region
Availability varies from region to region, but here are a few examples to point you in the right direction:
- Nordics – Luxorparts tiltable wall mount (Kjell & Company)
- Europe – deleyCON universal tilt/swivel wall mount (Amazon.de)
- USA – ELIVED tilt/swivel wall mount (Amazon.com)
These are examples rather than endorsements; any equivalent VESA100 mount with a suitable weight rating will do the job.
Still not sure?
If you're uncertain whether a specific mount will fit, you're always more than welcome to contact us; we're happy to help!
