1528 Series Bi-Amp connection

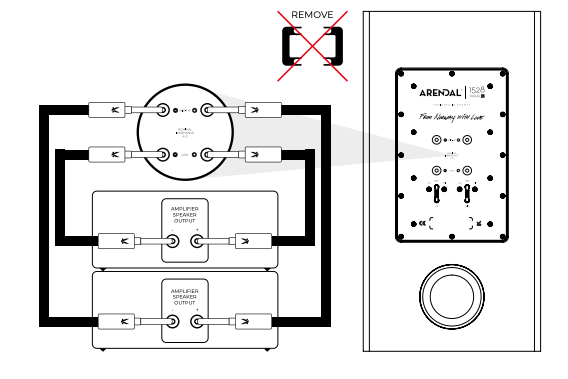

Bi-Amping uses two individual amplifiers. One amplifier for the tweeter and midrange section (MID-HF) and one amplifier for the bass (LOW). You need to remove the jumpers between the 4 binding posts, and connect the amplifiers with a single wire cable each.

Please note that both amplifiers should be gain matched, so you have the correct balance between the two frequency sections.

Warning: Amplifiers must be shut off while connecting.
