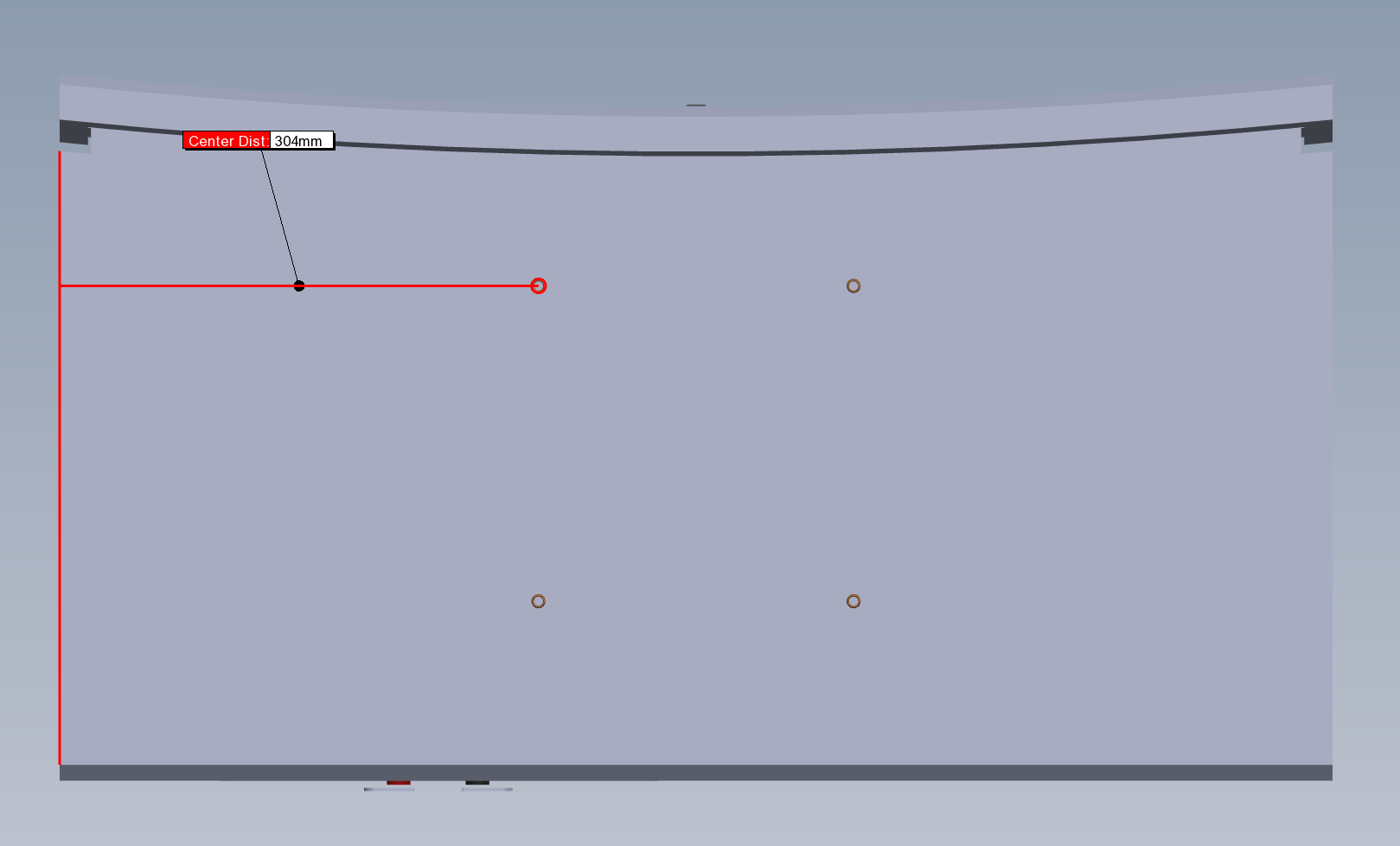

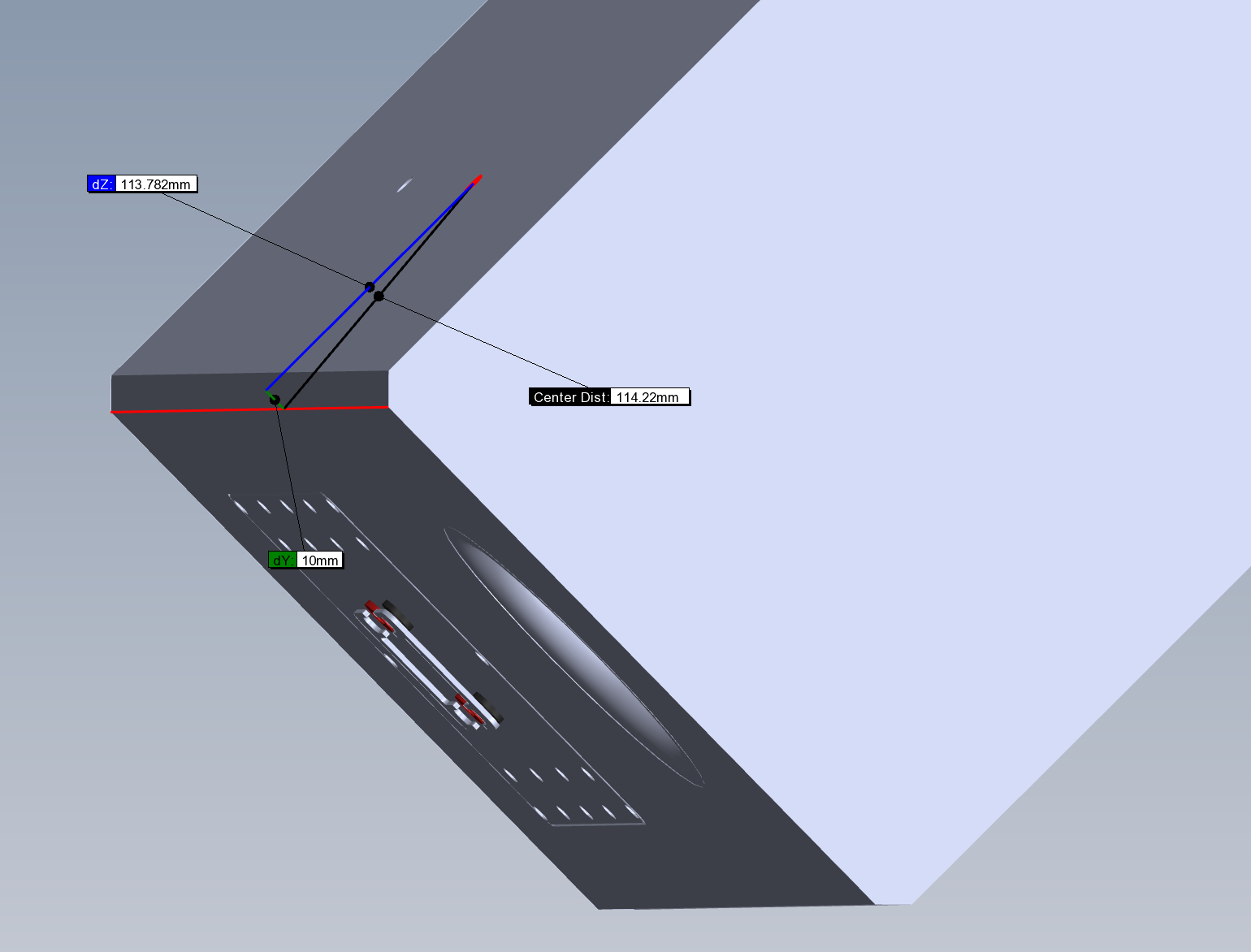

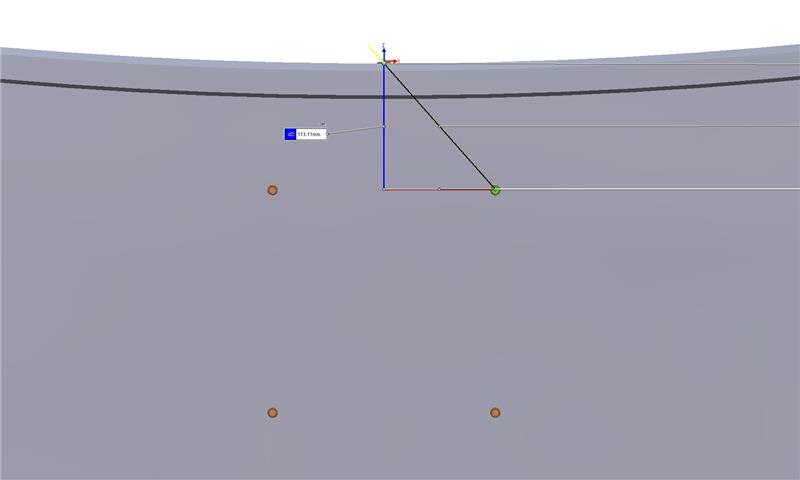

If you intend to securely mount our 1528 Center 8 speaker to a custom stand or top plate, please find the specifications for the thread inserts located at the bottom of the speaker below:

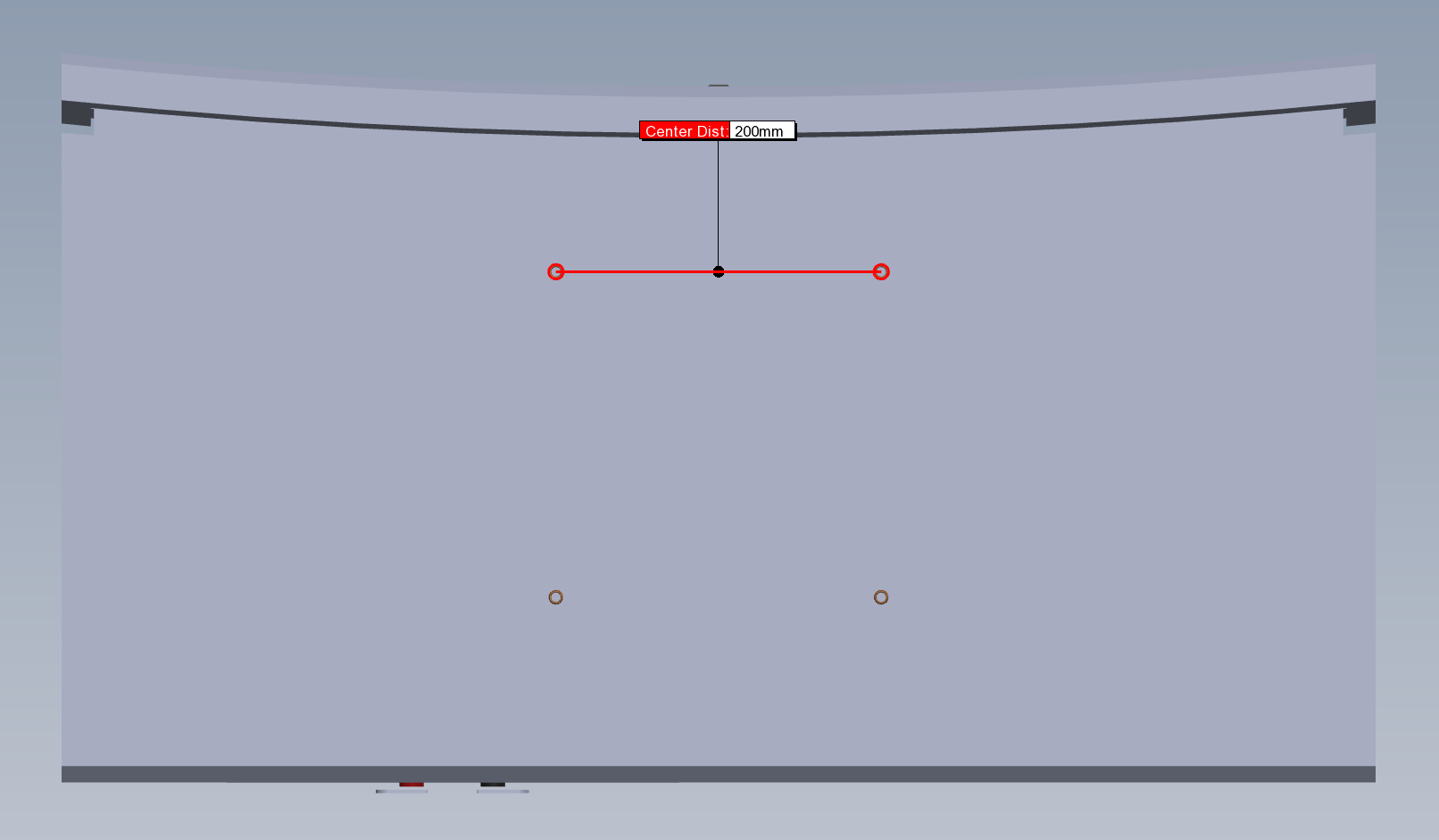

The inserts are arranged in a 200mm x 200mm pattern and are compatible with M6 threads.
We recommend using top plate dimensions of at least 250mm x 250mm.
