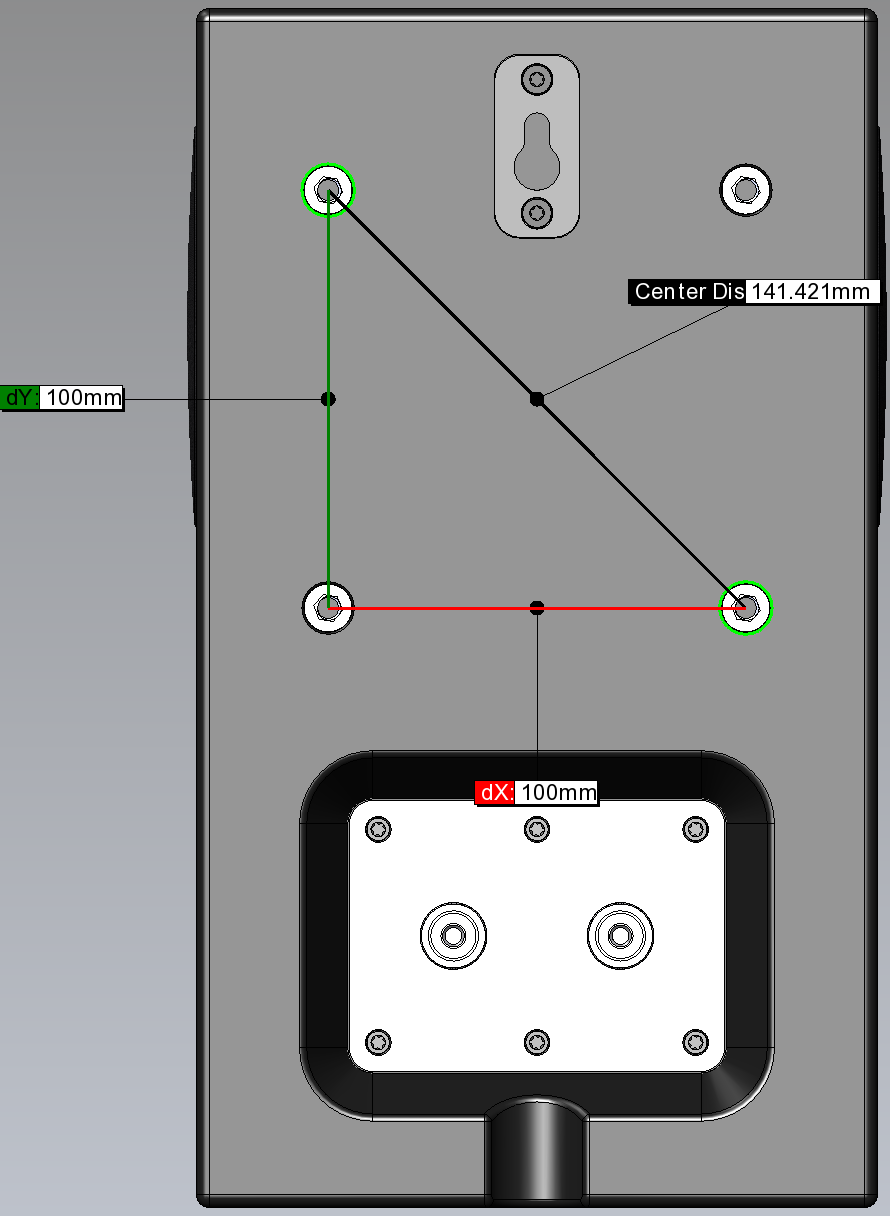

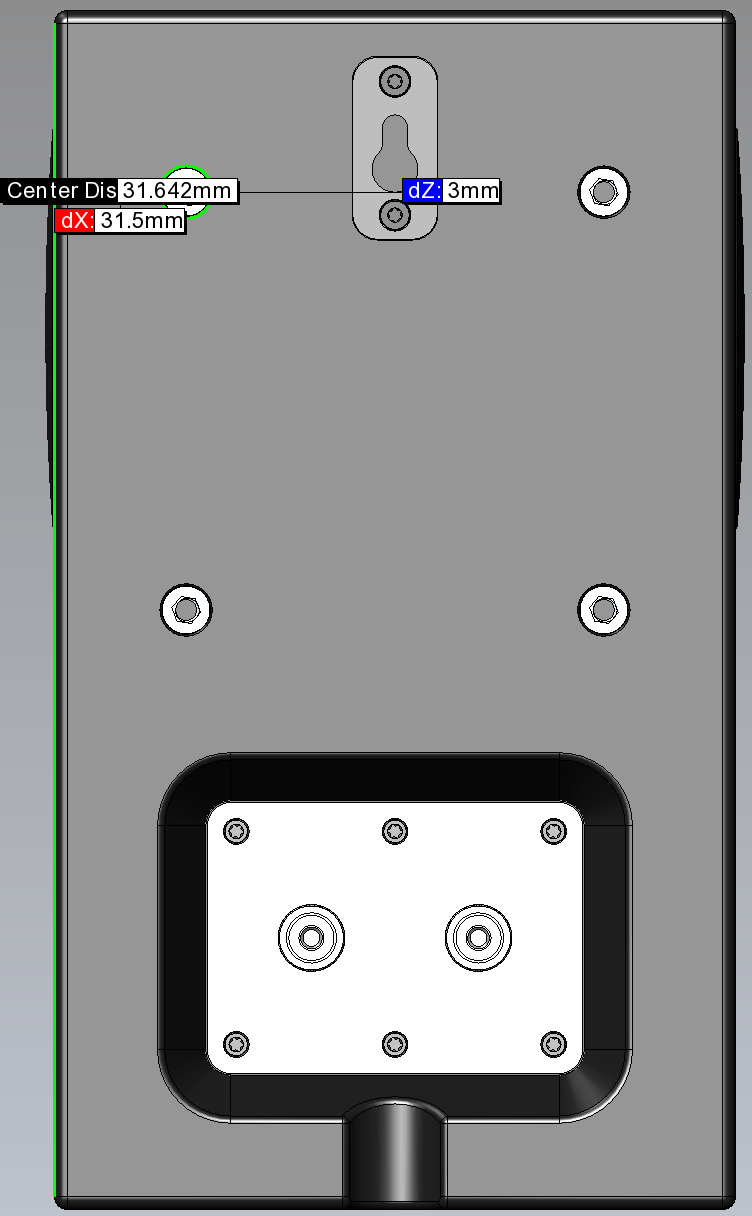

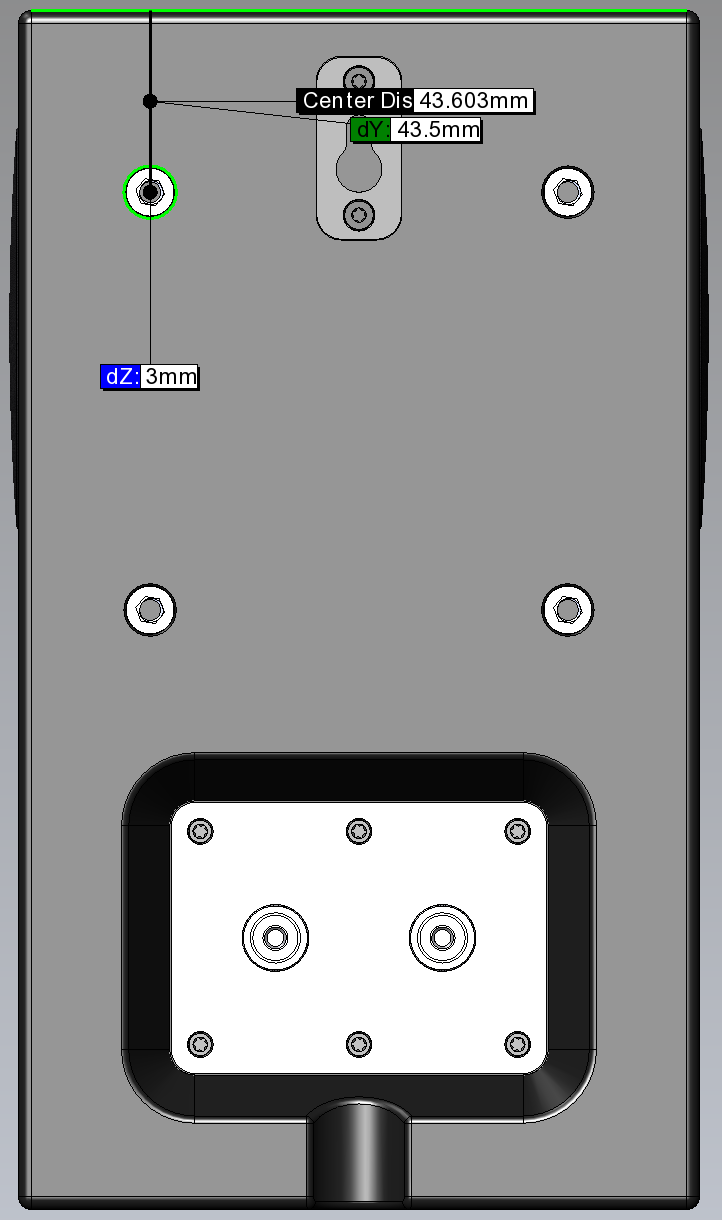

If you for any reason need the dimensions between the mounting holes, for example for making any type of custom bracket, then here are all the dimensions you need.
The depth of the nuts in the cabinet is 11.85mm. They use M6 screws and have standard VESA 100 distance between each nut.
