1610 Bookshelf 8 – Ideal Listening Axis and Speaker Height

For optimal performance from the 1610 Bookshelf 8, it is important to align your listening position with the speaker’s acoustic axis. This ensures the drivers integrate properly and deliver the most accurate and balanced sound.

Where Is the Ideal Listening Axis?

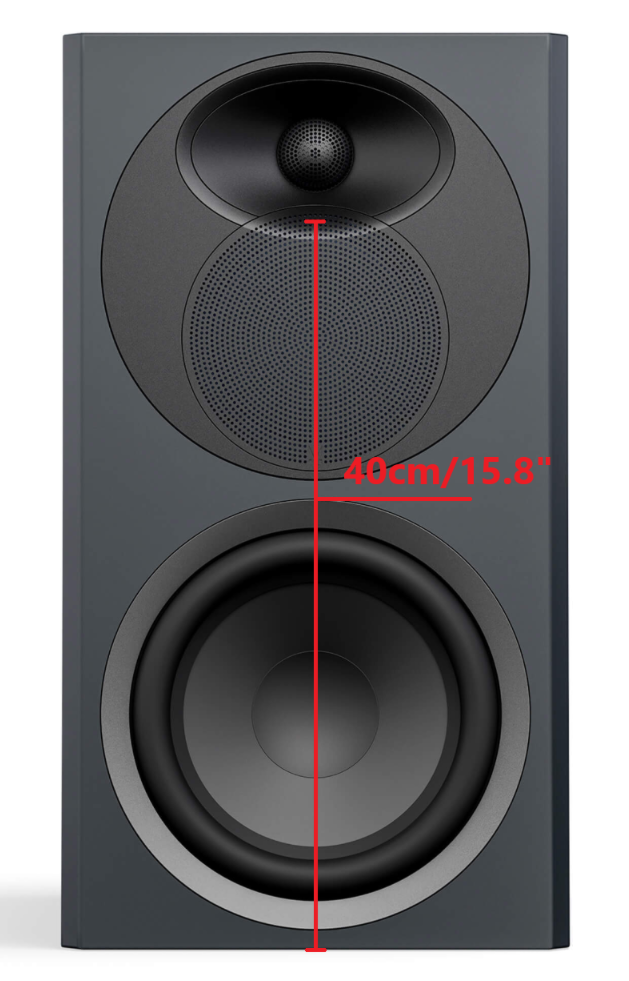

On the 1610 Bookshelf 8, the ideal listening axis is located 40 cm (just under 16 inches) from the bottom of the cabinet.

This point sits between the tweeter and the midrange driver, where both drivers align acoustically. At this position, the drivers combine seamlessly to produce the most coherent sound reproduction.

What Is the Acoustic Axis?

Every loudspeaker has an acoustic axis, which is the vertical point where all drivers integrate into a unified wavefront.

At this axis:

• The frequency response is most accurate

• Phase alignment between drivers is optimized

• Imaging and tonal balance are most precise

For the 1610 Bookshelf 8, this acoustic axis is located 40 cm from the bottom of the cabinet.

Recommended Listening Setup

For the most accurate sound reproduction:

• Align your ear height with the acoustic axis (40 cm / 16 inches from the bottom of the speaker)

• Choose speaker stands or furniture that position this point roughly at seated ear level

Typical seated ear height is around 90–100 cm (35–40 inches), so selecting the right stand height can help achieve this alignment.

How Critical Is the Exact Height?

While aligning with the acoustic axis is ideal, the design allows for some flexibility.

• Within approximately ±15 degrees vertically above or below the axis, the overall sound character remains very consistent

• Within this range, you should not experience significant tonal or imaging changes

However, beyond roughly 15 degrees off-axis, you may start to notice subtle changes in tonal balance or driver integration.

Practical Setup Advice

When setting up your 1610 Bookshelf 8 speakers:

1. Determine your seated ear height

2. Position the speaker so the 40 cm acoustic axis aligns as closely as possible with your ears

3. If exact alignment is not possible, try to remain within the ±15° vertical listening window

You can also make small adjustments by tilting the speaker slightly up or down toward the listening position if needed.

Following these guidelines helps ensure you experience the 1610 Bookshelf 8 exactly as intended, with proper driver integration, stable imaging, and balanced tonal performance.
