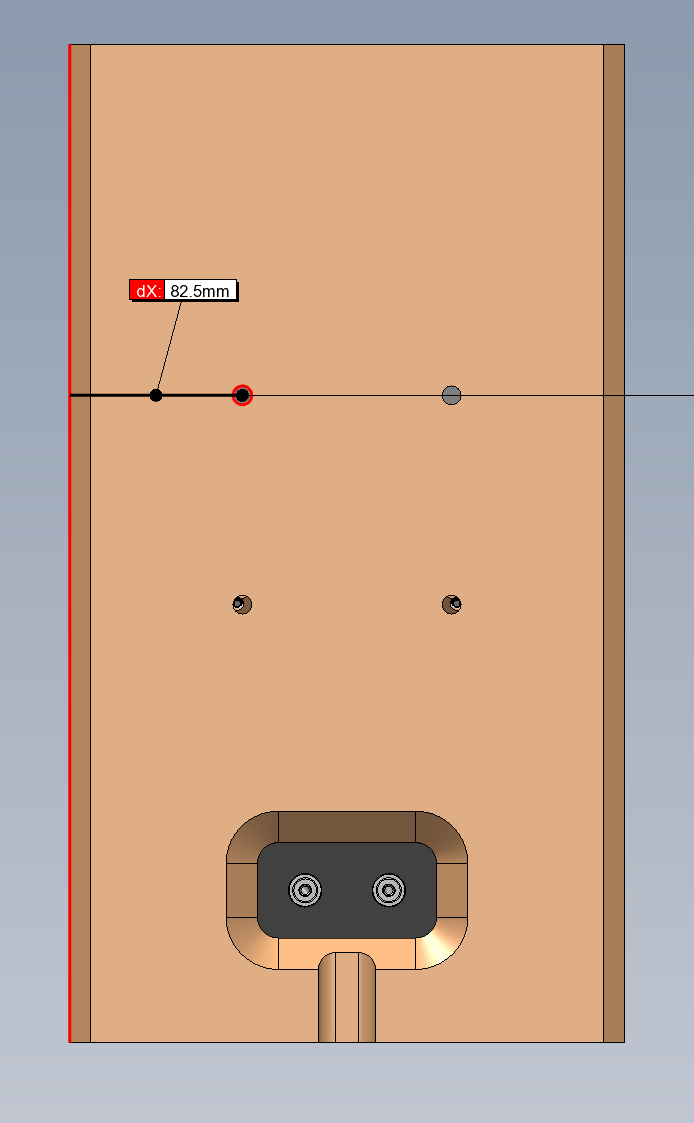

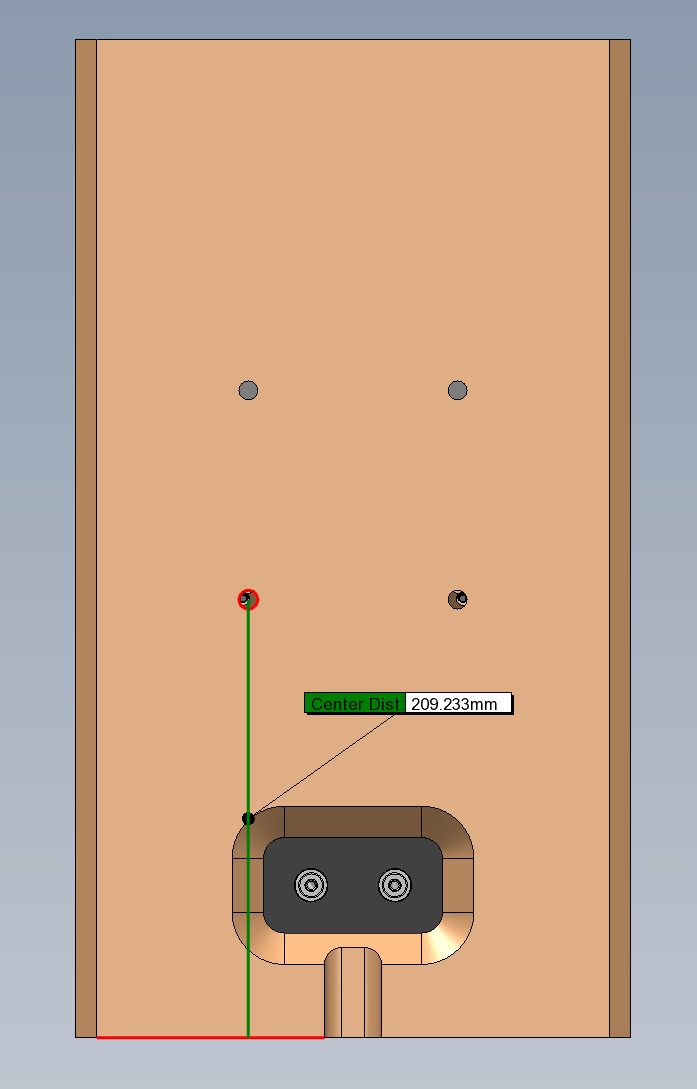

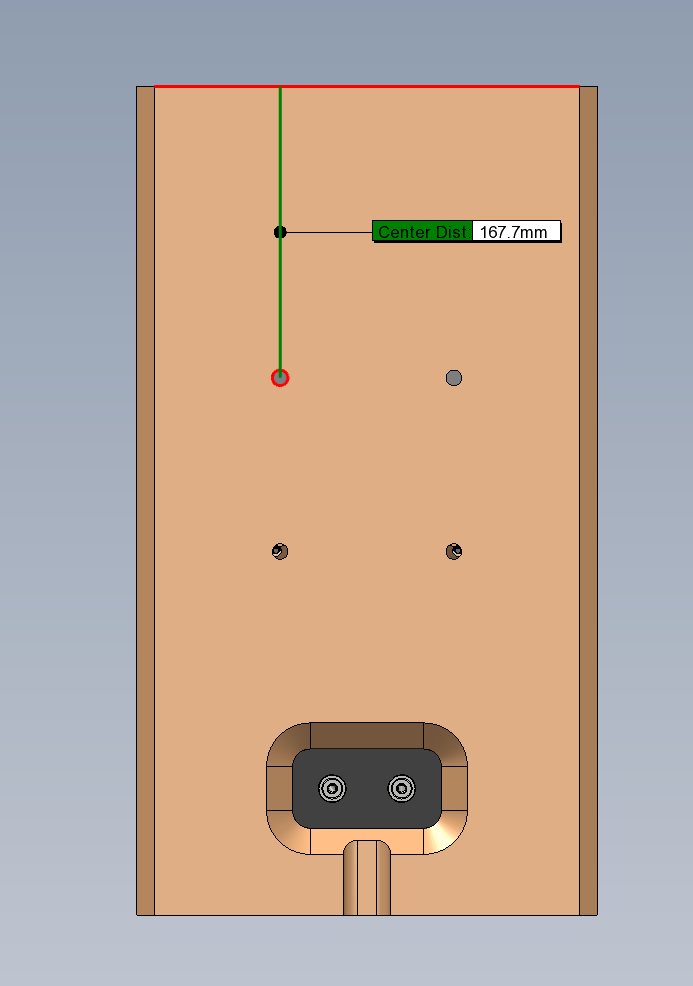

1610 Slim 8 – Mounting Dimensions

The 1610 Slim 8 is designed for flexible and secure installation in a wide range of setups.

VESA Mounting Standard

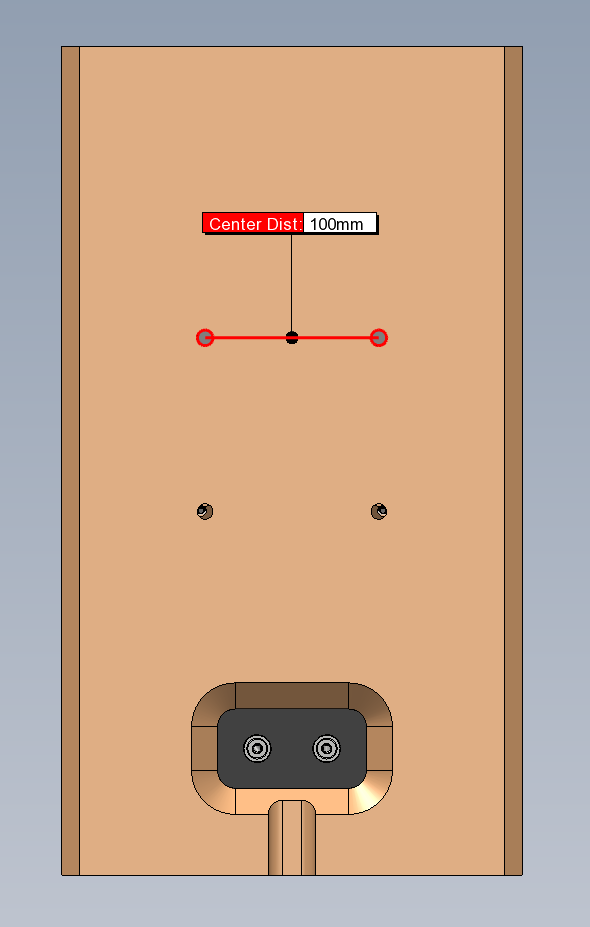

The speaker features a VESA 100 mounting pattern, with:

• 100 x 100 mm spacing
• M6 threaded inserts
• Insert depth of 11.85 mm

This widely used standard allows compatibility with many mounting solutions.

Compatibility and Installation

Because of the VESA 100 standard, the 1610 Slim 8 can be used with a variety of third-party mounts and brackets, offering flexibility for wall or ceiling installations.

Please ensure that any mount you choose:

• Is rated to support the full weight of the speaker
• Uses the correct M6 screws with appropriate length

With its standardized mounting system, the 1610 Slim 8 can be easily integrated into different environments while maintaining a clean and secure installation.

If you have any questions about mounting or compatibility, our team is always happy to help.
