If you plan to securely mount your 1610 Center 8 to a custom stand or top plate, it is important to use the correct insert specifications.
Mounting Insert Specifications

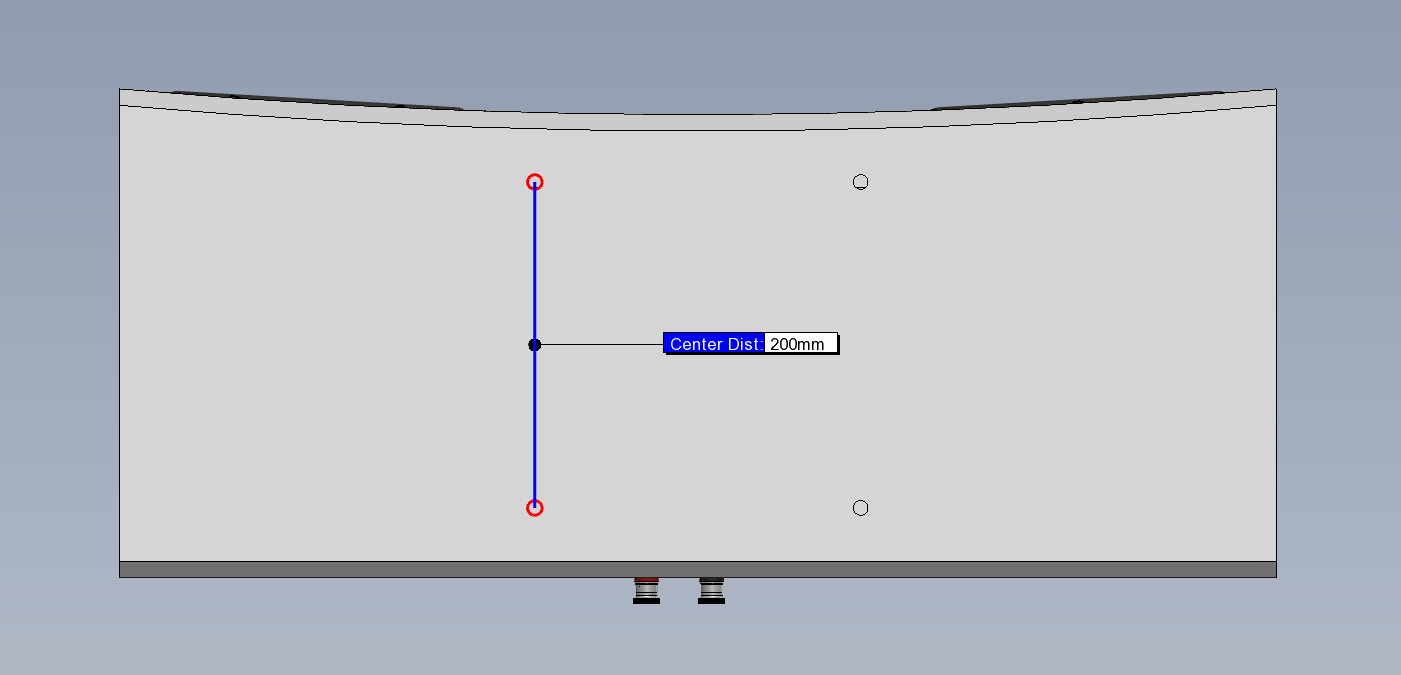

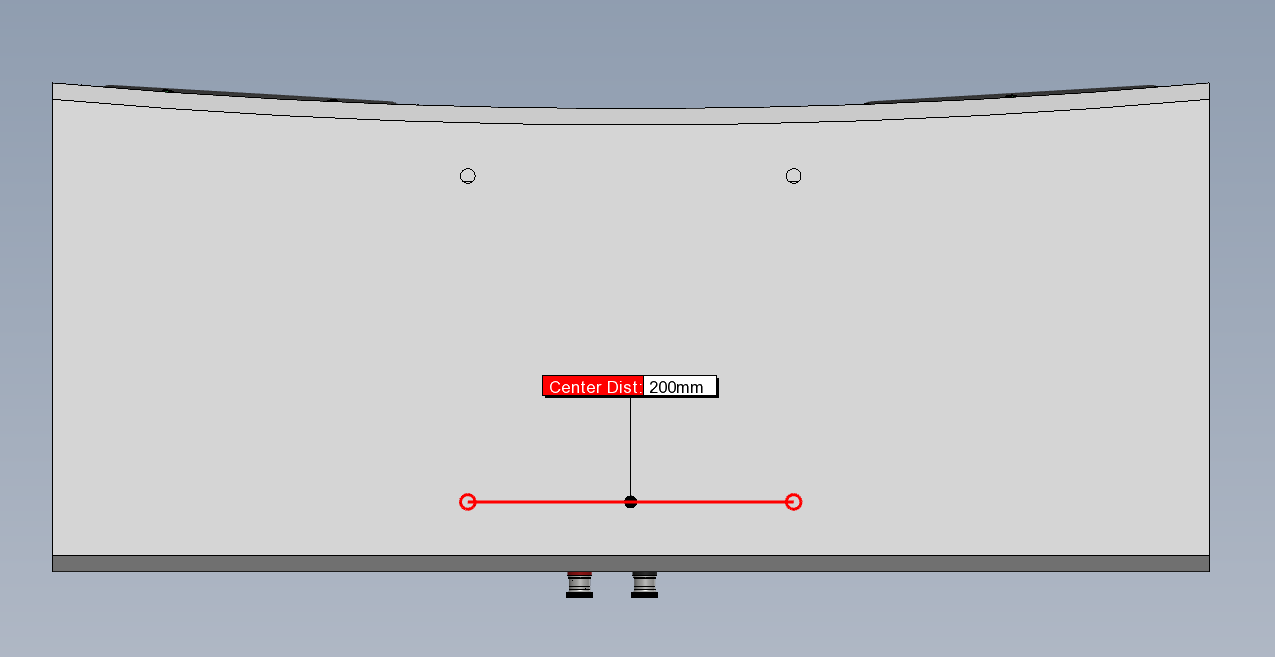

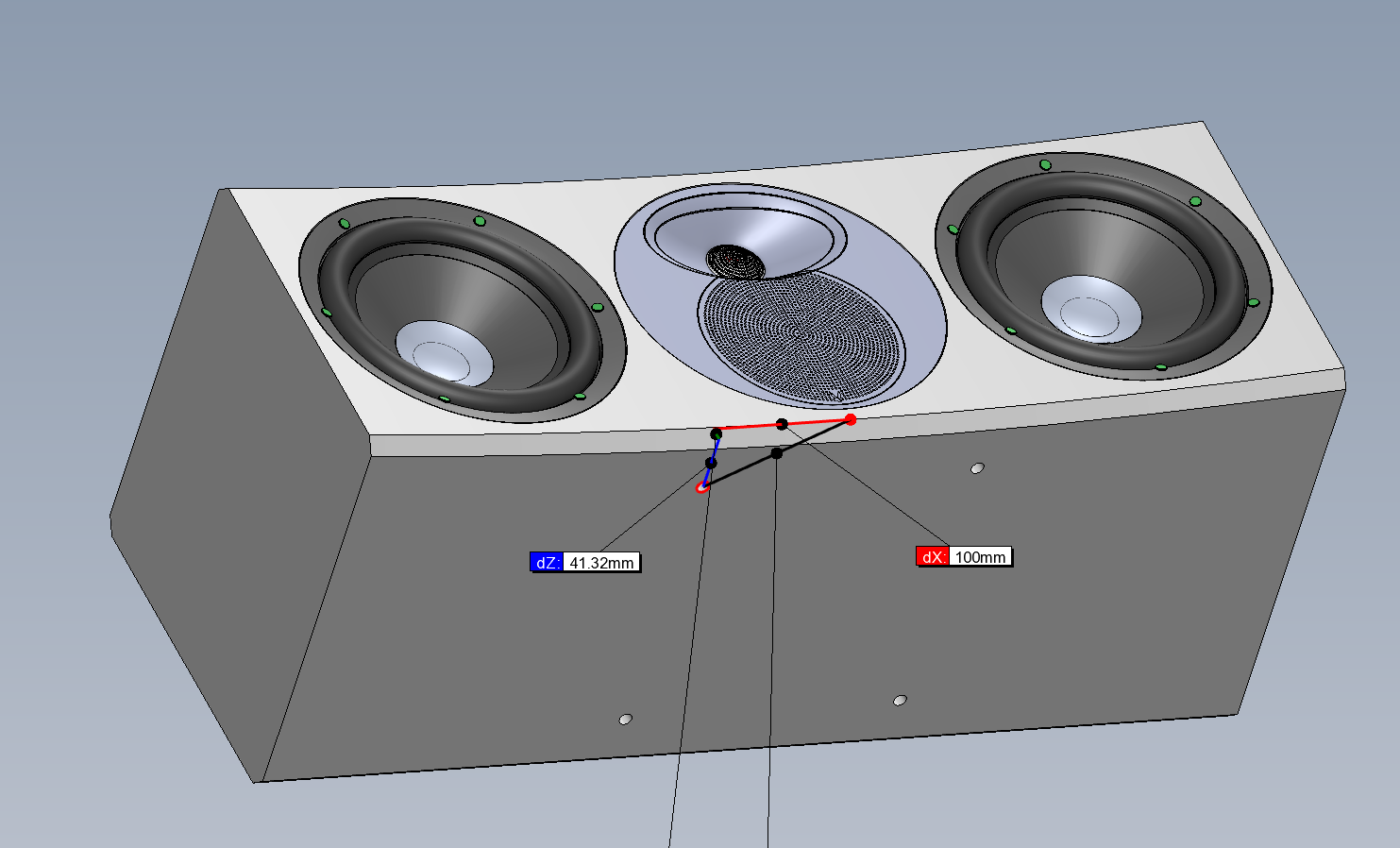

The threaded inserts located on the bottom of the speaker have the following dimensions:
- Pattern: 200 x 200 mm
- Thread type: M6
This allows for secure attachment to compatible stands or custom mounting solutions.
Please keep in mind that this is a handmade product, and there may be slight variations in measurements.
Recommended Stand Top Plate Size
For proper support and stability, we recommend using a top plate size of at least 250 x 250 mm.
This ensures:
- Adequate surface contact
- Proper weight distribution
- Long-term stability
Always ensure that your stand and mounting hardware are rated to support the weight of the speaker and use appropriate M6 screws with the correct length.
If you need assistance selecting or verifying a stand solution, our team is always happy to help.
